Single Ring / Spiral Binding Machine Spiro RB120 S | Spiro RB120 D
The Spiro RB120 S / RB120 D are designed for automated reel-to-spiral notebook production with integrated punching and binding.
Speed*
300
Meters/Minute
Conv. Strokes*
50
Cycles/Minute
Ups
6
Maximum
Single Ring / Spiral Binding Machine
A spiral binding system that processes paper into punched and bound notebooks through integrated punching, ring insertion, and closing operations.
Spiro RB120 S
Spiro RB120 D
Technical Specification
| Model | Spiro RB120 S | Spiro RB120 D |
|---|---|---|
| Web Speed* (Meters/minute) | 300 | 300 |
| Converting Strokes* (Cycles/minute) | 40 | 40 |
| Number of Ups* (Max.) | 6 | 6 |
| Reel Width (mm) | 600 to 1200 | 600 to 1200 |
| Printing Width (mm) | 600 to 1190 | 600 to 1190 |
| Reel Diameter (mm) | 1400 | 1400 |
| Core I.D. (mm) | 76.2 | 76.2 |
| Reel Weight (Kgs.) | 1700 | 1700 |
| Printing Tower | 2 color flexo unit each side | 2 color flexo unit each side |
| Printing Length (mm) | 420 to 680 (variation of 2.5 mm) | 420 to 680 (variation of 2.5 mm) |
| Cutting Length (mm) | 210 to 340 (variation of 2.5 mm) | 210 to 340 (variation of 2.5 mm) |
| Sheet Count | 6 to 30 | 6 to 30 |
| Paper (GSM) | 45 to 90 | 45 to 90 |
| Index & Title (GSM) | 50 to 400 | 50 to 400 |
| Max. Punching Thickness* (mm) | 2.5 (1750 GSM) | 2.5 (1750 GSM) |
| Book Size (Bound Edge) (mm) | 210 to 340 | 210 to 340 |
| Book Size (Unbound Edge) (mm) | 148 to 285 | 148 to 285 |
| Rec. Floor Space (L X W X H) (meters) | 27 X 25 X 4 | 27 X 25 X 4 |
| Single Ring Binding Section (Spiro RB120 S) | Product Thickness (mm) | 6.35 mm pitch – 5 to 16 |
| Double Ring Binding Section (Spiro RB120 D) | Product Thickness (mm) | 3.1 mm pitch – 5 to 11 2:1 mm pitch – 11 to 16 |
| * Speed & Production: will depend upon count of sheets, book or cut size and GSM of the paper being used. | ||
| * Converting Strokes: will depends upon bunch sheet counts. | ||
| * Maximum Ups: will depend upon cut sheet size with in machine width limit of 1200 mm. | ||
| * Punching Thickness: open sheets with index and title cover thickness not above 2.5 mm & 1750 GSM Max. # Depends on no. of Ups. | ||
Unitwise Features

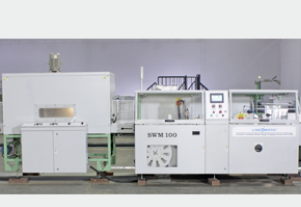

Shrink Wrapping Unit
An inline shrink wrapping unit for complete book bunch accurately.

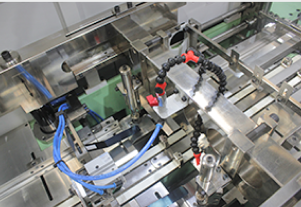

Round Corner Cutting Unit
Inline and accurate round corner cutting of a book bunch.

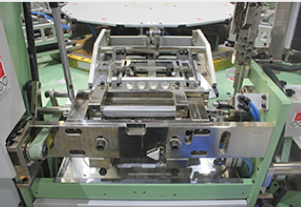

Single Ring Unit
Accurate insertion of Single Ring wire with U Locking feature. An automatic rejection unit for not having proper wire insertion or a U Lock in the book.

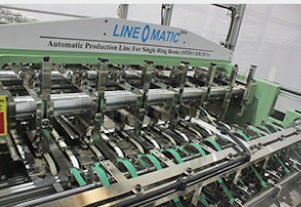

Bunch Gathering Unit
Ensures precise counting and uniform stacking for smooth handling. Allows quick job changes and supports stacking up to 400 sheets.

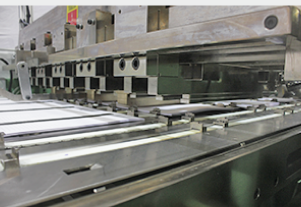

Punching Unit
Sturdy punching unit ensures precise, multi-hole punching. Features hardened components and easily replaceable dies for flexibility and durability.

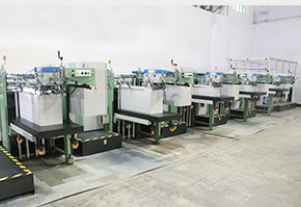

Inserter Unit
No manual intervention for cover feeding or for taking additional covers.

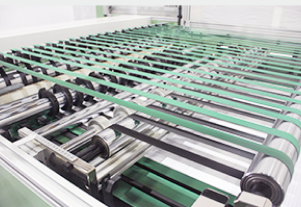

Paper Counting & Collating Unit
HMI allows operators to easily change the number of sheets or pages directly, eliminating the need for manual gear changes.

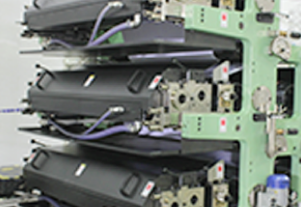

Printing Unit
Robust printing tower with automatic ink circulation, dual trays, and a float sensor for low ink alerts and auto stop.

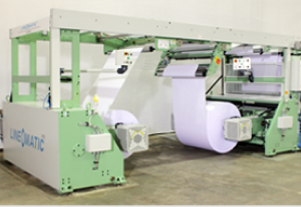

Auto Splicer
Paper is being added without stopping the machine, avoiding downtime required for reel changeovers. The accumulator is controlled by heavy-duty chain-drive dancer rollers powered by servo motors.
Advantages
High Output
High-quality end products
High level of automation
Low production cost
Minimum workforce
Consistent performance
Excellent quality output
Short payback period
Higher profitability & longer life
Easy to operate & low in maintenance
Addons
Auto Splicer
Splicing speed – 90 m/min
Chamber Doctor Blade System
Precise inking at high speed
Universal Round Corner Cutting Unit
Strokes – 80 cycles/min
In-Line Shrink Wrapping Machine
Strokes – 50 / 80 cycles/min
End products
Single Ring Notebooks
Double Ring Notebooks
Filler Paper
