Cut Size Sheeter Terra RR170
Terra RR170 is a heavy-duty cut size sheeter designed for wider reels and higher throughput, delivering precise cutting, advanced automation, and consistent performance for demanding large-scale paper converting operations.
Max. Speed*
250
Meters/Minute
Pockets
6
Maximum
Cut Size Sheeter
An advanced wide-web sheeter offering heavy-duty performance and robotic automation for high-throughput cut-size production in the most demanding industrial environments.
Technical Specification
| Model | Terra RR170 |
|---|---|
| Web Speed** (meters/minute) | 250 |
| Ream Wrapping Strokes** (cycles/minute) | 80 |
| Reel Width (mm) | 860 to 1700 |
| Reel Diameter (mm) | 1600 |
| Reel Weight (Kgs.) | 3400 |
| Core I.D. (mm) | 152.4 |
| No. of Pockets | 8 |
| Max. Knife Load (GSM) | 500 |
| Max. Cutting Width (mm) | 1680 |
| Paper (GSM) | 70 to 100 |
| Production Capacity* (Tons for 24 hours working) | up to 150 |
| ** Number of paper reels will be used/configured based either on Max. machine speed or on Max. Ream Wrapping Strokes. | |
| * Depending upon quality and GSM of paper. | |
Unitwise Features

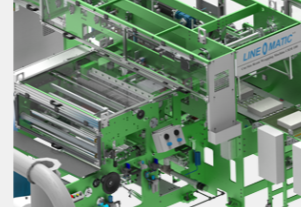

Ream Wrapping Unit
Automatically wraps sheets into uniform, tightly packed reams. Ensures high-quality packaging and smooth handling.

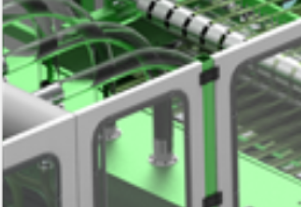

Synchro Rotary Cutting Unit
Synchronized rotary knives ensure precise cutting with clean edges. Maintains consistent sheet length even at high speeds.

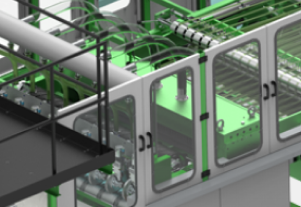

Slitting Unit
Pneumatic system enables precise knife positioning and flexible width adjustment. Ensures clean slitting with minimal dust and waste.

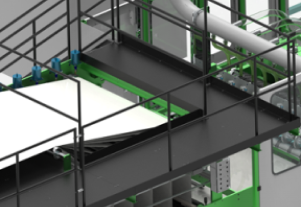

Decurling Unit
Removes paper curl effectively, ensuring flat sheets and improved quality for subsequent processing stages.

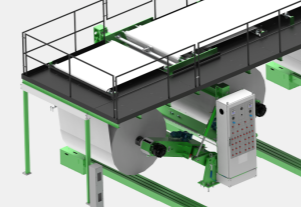

Reel Unwind Stand
Shaft-based unwinder with hydraulic brake ensures controlled tension. Easy chain loading and a decurling bar maintain smooth, flat paper flow.

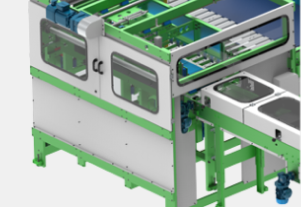

Ream Stacker Unit
Organizes finished sheets into perfectly aligned reams, preparing them for high-speed automated transport to the next packaging phase.

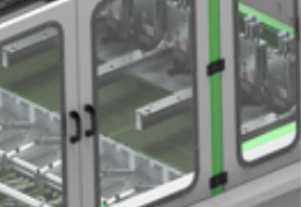

Robotic Ream Pickup
Utilizes advanced robotics to automate ream handling with precision, reducing manual effort and improving production efficiency.

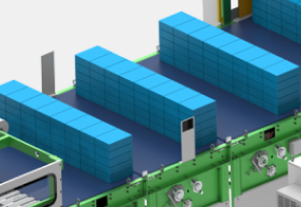

Ream Accumulator
Temporarily stores reams to maintain a continuous workflow, ensuring smooth production without interruptions.

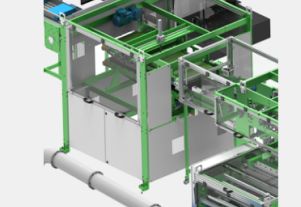

Girth Glue System
Applies consistent adhesive for secure ream packaging, improving wrapping quality and overall product presentation.
Discharge Roller Conveyor
Facilitates the smooth transport of finished reams, ensuring efficient movement and high-speed delivery without damaging the packaging.

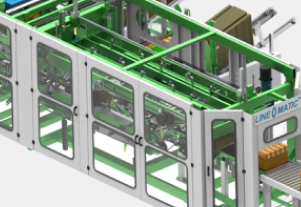

Case Packer Unit
Automates the final packing of reams into cases, providing a complete end-to-end solution for large-scale industrial shipping.

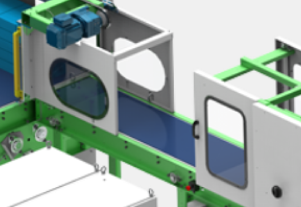

Stack Discharge Conveyor
Provides a continuous flow of finished reams, efficiently transporting them from the cutting section to the final packaging stage.
Advantages
Precise cutting accuracy
Low production cost
Minimum workforce
Consistent performance
Excellent wrapping quality
Higher profitability & longer life
Easy to operate & low in maintenance
High-quality end products
High level of automation
Addons
Splice Detection Unit
Digital Batch Code Printer
Ream Inspection System
Case Packer Machine
End products
Photocopy Paper (Copier Paper)
