Center Sewn / Stitching Binding Machine Uno B104
The Uno B104 is designed for reliable center-sewn binding with consistent stitching and stable operation. It delivers efficient performance with essential automation, ensuring uniform output across a range of notebook formats.
Max. Conv. Strokes*
40
Cycles/Minute
Ups
4
Maximum
Center Sewn / Stitching Binding Machine
A stitching binding system that processes collated paper sets into center-sewn notebooks through precise stitching and folding, enabling smooth operation and consistent binding quality for efficient notebook production.
Uno B104
Uno B104 LC
Technical Specification
| Model | Uno B104 | Uno B104 LC |
|---|---|---|
| Converting Strokes* (cycles/minute) |
40 | 40 |
| Number of Ups (max.) | 4 | 4 |
| Bunch Width (mm) | 400 to 1040 | 400 to 1040 |
| Bunch Length (mm) | 290 to 450 | 290 to 700 |
| Sheet Bunch | 4 to 50 sheets (16 to 200 pages) | 4 to 50 sheets (16 to 200 pages) |
| Max. Stitching Thickness (mm) | 5 | 5 |
| Rec. Floor Space (L × W × H) (meters) | 11 X 7 X 4 | 13 X 7 X 4 |
| * Actual feeding speed depends on manpower skill. | ||
Unitwise Features

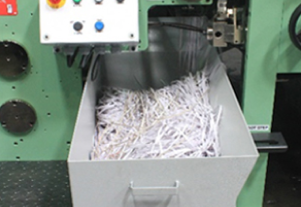

Waste Removal Arrangement
2 separate and specious waste removal trolleys with moving wheels for the front cutting unit and the book separating cutting unit.

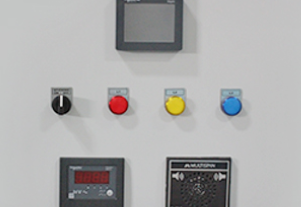

Control Panel (PLC)
High-tech electronic control panel suitable for operating all electrical and electronic functions.

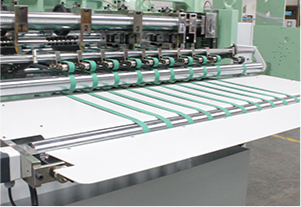

Delivery Attachment
Automatic Book overlapping provides sufficient time to take the books manually.

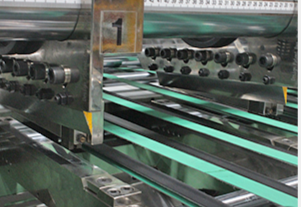

Book Separating & Cutting Unit
A robust and patented book separating & cutting unit.

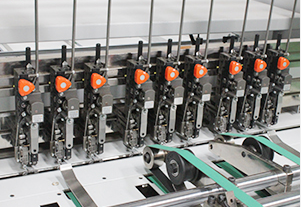

Wire Stitching Unit
Heavy-duty stitching unit delivers consistent pinning quality. Features include wire spool mounting, mechanical pulling, and precise spacing.

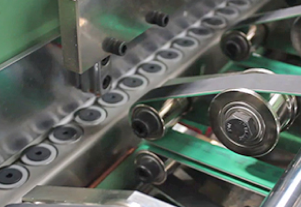

Mechanical Square Back Pressing Unit
A mechanical square presser for the best quality back squaring / edge squaring that is synchronized with machine speed. It also offers low maintenance and a fast setting time.

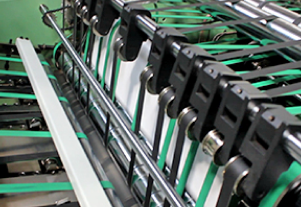

Folding Unit
Central bottom folding knife with gauge setting, along with two knurling steel rolls for accurate center folding.

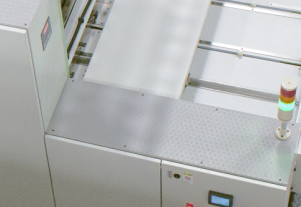

Bunch Conveyor Unit
Manual bunch feeding table with platform arrangement for easy bunch feeding.
Advantages
Economical solution
High-quality end product
Excellent quality output
Longer life
Easy to operate & low maintenance cost
Addons
No. of Ups: Maximum 5
Trim Blower
No. of Stitching Heads: Maximum 12
End products
Staple Pin Exercise Notebooks
Drawing Books
