Fully Automatic Exercise Book Machine Nova RB
Designed for controlled and efficient production, the Nova RB series offers balanced speed and precision with improved synchronisation for consistent performance and reliable output across varied production requirements.
Speed*
300
Meters/Minute
Converting Strokes*
50
Cycles/Minute
Ups
6
Maximum
Fully Automatic Exercise Book Machine
An integrated production line that combines essential processes into a streamlined workflow, delivering consistent quality, smooth operation, and efficient output for mid-to-high scale manufacturing setups.
Nova RB104™
Nova RB104 LC™
Nova RB120™
Technical Specification
| Model | Nova RB104™ | Nova RB104 LC™ | Nova RB120™ | |
|---|---|---|---|---|
| Web Speed* (meters/minute) |
300 | 300
(250 for drawing book) |
300 | |
| Converting Strokes* (cycles/minute) |
50 | 50 | 50 | |
| Number of Ups (max.) | 5 | 5 | 6 | |
| Reel Width (mm) | 400 to 1040 | 400 to 1040 | 600 to 1200 | |
| Printing Width (mm) | 400 to 1030 | 400 to 1030 | 600 to 1190 | |
| Reel Diameter (mm) | 1400 | 1400 | 1400 | |
| Core I.D. (mm) | 76.2 | 76.2 | 76.2 | |
| Reel Weight (kgs.) | 1500 | 1500 | 1700 | |
| Printing Tower | 2 color flexo units on each side |
2 color flexo units on each side |
2 color flexo units on each side |
|
| Printing & Cutting Length (mm) |
290 to 450
(Variation of 5 mm) |
290 to 700
(Variation of 5 mm) |
290 to 450
(Variation of 5 mm) |
|
| Sheet Count | 4 to 50 sheets | 4 to 50 sheets | 4 to 50 sheets | |
| (16 to 200 pages) | (16 to 200 pages) | (16 to 200 pages) | ||
| Paper (GSM) | 45 to 70 | 45 to 70 | 45 to 70 | |
| Index & Title (GSM) | 50 to 600 | 50 to 600 | 50 to 600 | |
| Max. Stitching Thickness (mm) |
5 | 5 | 5 | |
| Rec. Floor Space (L x W x H) (meters) | 26 X 10 X 4 | 30 X 10 X 4 | 26 X 10 X 4 | |
| * Machine speed and converting strokes will depend on the GSM of the paper, the book size, and the number of pages per book. | ||||
Unitwise Features

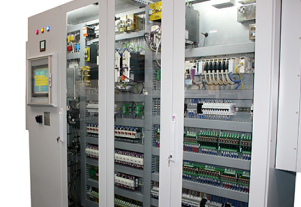

High-Tech Control Panel with HMI-PLC
A suitable control panel for operating all electrical and electronic components.

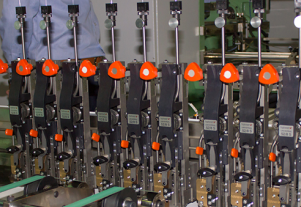

Upgraded Stitching Unit
Reduces setup time for head stitching and is easier to scale.
Automatic Ink Circulation System
Eliminates manual ink filling and delivers a consistent ink flow for high-quality printing. Less foaming in the ink tray.

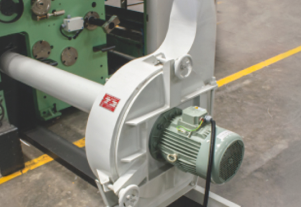

Waste Removal Suction Blower
Centralized trim waste collection to keep the machine area clean for smooth operation.

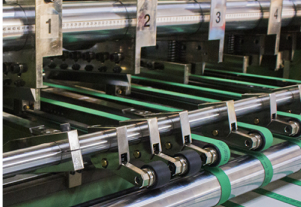

Book Separating & Cutting Unit
A robust and patented book separating & cutting unit.

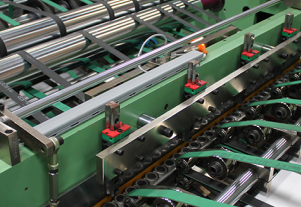

Mechanical Square Back Pressing Unit
A mechanical square presser for the best quality back squaring / edge squaring that is synchronized with machine speed. It also offers low maintenance and a fast setting time.

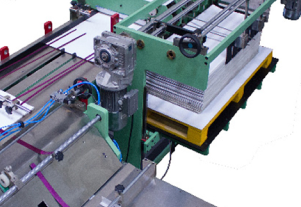

Side Pile Delivery
Provides a counted and uniform pile of printed sheets with a title cover.

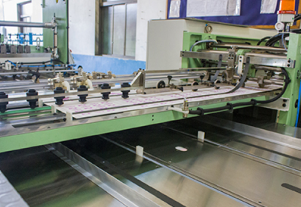

No Paper Bunch, No Title Cover
No manual intervention required for cover feeding or for taking additional covers.

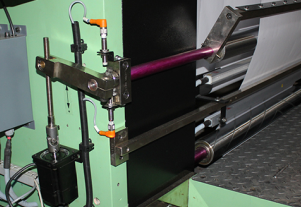

Automatic Decurling System
No manual intervention for de-curling adjustments when reel diameter changes.

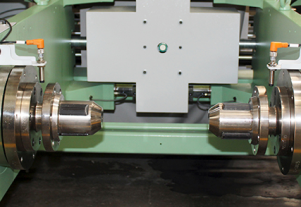

Shaftless Reel Unwind Stand with Reel Dia Sensor
A hydraulic floor pickup system for effortless reel loading and a reel diameter sensor. It also includes a scale for accurate web centering and a pneumo-hydraulic web guiding system to maintain alignment.
Advantages
Moderate output
High-quality end products
High level of automation
Minimum manpower
Consistent performance
Excellent quality output
Longer life
Easy to operate & low in maintenance cost
Addons
Auto Splicer
Splicing speed – 90 m/min
Stand-Alone Shrink Wrapping Machine
Stand-Alone Shrink Wrapping Machine
Side Pile Delivery Unit
Pile height – 900 mm
End products
Staple Pin Exercise Notebooks
Drawing Books
