Center Sewn / Stitching Binding Machine Compo RB104®
The Compo B104 is designed for automated center-sewn notebook production with integrated stitching, folding, and finishing, delivering consistent binding quality with stable performance across continuous production.
Speed*
300
Meters/Minute Conv.
Strokes*
22
Cycles/Minute
Ups
5
Maximum
Center Sewn / Stitching Binding Machine
A stitching binding system that processes collated paper sets into center-sewn notebooks through precise stitching and folding operations, ensuring smooth workflow and consistent binding quality across various notebook formats.
Compo RB104®
Technical Specification
| Model | Compo RB104® |
|---|---|
| Web Speed* (meters/minute) | 300 |
| Converting Strokes* (cycles/minute) | 22 |
| Number of Ups (max.) | 5 |
| Reel Width (mm) | 560 to 1040 |
| Printing Width (mm) | 560 to 1030 |
| Reel Diameter (mm) | 1400 |
| Core I.D. (mm) | 76.2 |
| Reel Weight (Kgs.) | 1500 |
| Printing Tower | 2 color flexo unit each side |
| Printing & Cutting Length (mm) | 290 to 450 (Variation of 5 mm) |
| Sheet Count | 10 to 50 sheets (40 to 200 pages) |
| Paper (GSM) | 45 to 70 |
| Index & Title (GSM) | 200 to 600 |
| Max. Stitching Thickness (mm) | 5 |
| Sewing Type | Chain Stich |
| Rec. Floor Space (L x W x H) (meters) | 46 X 15 X 4 |
Unitwise Features

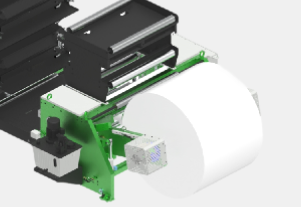

Unwind Stand
Provides smooth reel feeding with consistent web tension. Supports stable, continuous production with minimal interruptions.

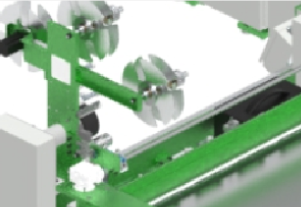

Taping Unit
Applies spine tape to strengthen binding. Ensures durability with a clean and uniform finish.

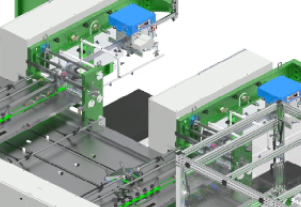

Sheet Form Inserter
Inserts pre-printed sheets accurately into the flow. Maintains sequence and alignment for added pages.

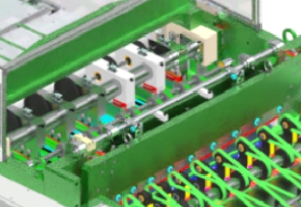

Separating & Cutting Unit
Cuts and separates sheets precisely to the required sizes. Ensures uniform dimensions for further processing.

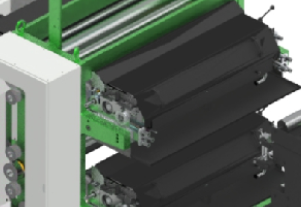

Printing Unit
Performs inline ruling or flexo printing with consistent quality. Supports multiple notebook formats.

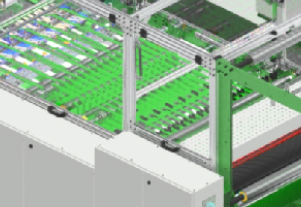

Paper Counting Unit
Counts sheets accurately for each book. Maintains pagination consistency and reduces wastage.

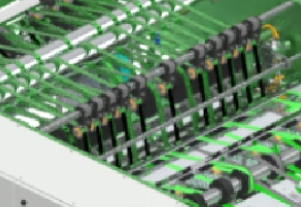

Folding & Square Back Unit
Folds sheets into final form with a square spine. Ensures neat structure and proper alignment.

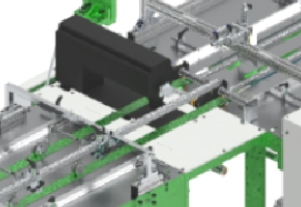

Central Thread Sewing Unit
Provides strong center stitching using thread. Ensures durability and secure page binding.

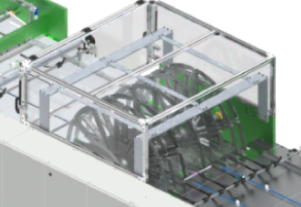

Bunch Flip Unit
Automatically flips stitched bunches for the next stage. Maintains correct orientation without manual handling.

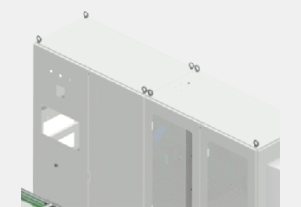

Control Panel
Centralized system for monitoring and control. Ensures synchronized and efficient machine operation.
Advantages
Moderate Output
High-quality end product
High level of automation
Minimum manpower
Consistent performance
Excellent quality output
Longer life
Easy to operate & low in maintenance
Addons
Auto Splicer
Splicing speed – 90 m/min
Stand-Alone Shrink Wrapping Machine
Strokes – 50/80 cycles/min
Universal Round Corner Cutting Unit
Strokes – 50 cycles/min
End products
Central Sewn Notebooks
