Fully Automatic Exercise Book Machine Uno RB
Built for dependable performance, the Uno RB series delivers stable reel-to-book production with essential automation, ensuring smooth operation and consistent results for cost-conscious manufacturing environments.
Max. Speed*
200
Meters/Minute
Conv. Strokes*
40
Cycles/Minute
Ups
4
Maximum
Fully Automatic Exercise Book Machine
An affordable option that integrates core processes into a compact workflow, offering reliable output, ease of operation, and efficient performance for manufacturers.
Uno RB104™
Technical Specification
| Model | Uno RB104™ |
|---|---|
| Web Speed* (meters/minute) | 200 |
| Converting Strokes* (cycles/minute) | 40 |
| Number of Ups (max.) | 4 |
| Reel Width (mm) | 400 to 1040 |
| Printing Width (mm) | 400 to 1030 |
| Reel Diameter (mm) | 1200 |
| Core I.D. (mm) | 70 to 100 |
| Reel Weight (kgs.) | 1100 |
| Printing Tower | 2 color flexo units on each side |
| Printing & Cutting Length (mm) | 290 to 450 (Variation of 5 mm) |
| Sheet Count | 4 to 50 sheets (16 to 200 pages) |
| Paper (GSM) | 45 to 70 |
| Index & Title (GSM) | 50 to 600 |
| Max. Stitching Thickness (mm) | 5 |
| Rec. Floor Space (L x W x H) (meters) | 24 X 10 X 4 |
| * Machine speed and converting strokes will depend on the GSM of the paper, the book size, and the number of pages per book. | |
Unitwise Features

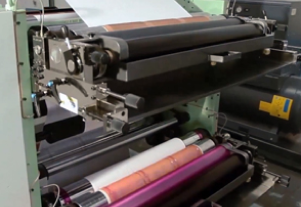

Printing Tower
Dual-color ruling/flexo printing on both sides ensures high-quality output. Anilox roller and self-feeding inking provide uniform ink transfer.

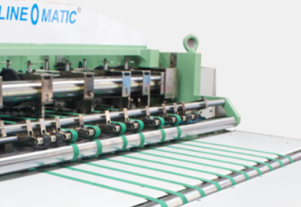

Book Delivery Attachment
Automatic book overlapping provides sufficient time to take the books manually.

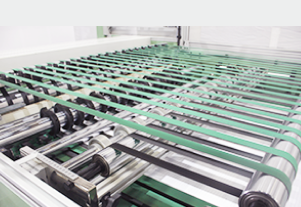

Paper Counting & Collating Unit
HMI allows operators to easily change the number of sheets or pages directly, eliminating the need for manual gear changes.

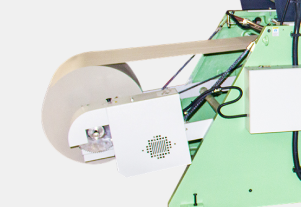

Reel Unwind Stand
Shaft-based unwinder with hydraulic brake ensures controlled tension. Easy chain loading and a decurling bar maintain smooth, flat paper flow.

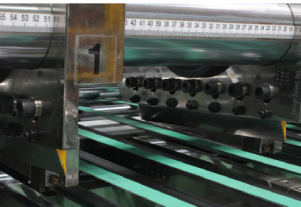

Separating & Cutting Unit
Equipped with 5 top and 5 bottom knives for up to 4-ups. Patented design ensures precise and efficient cutting.

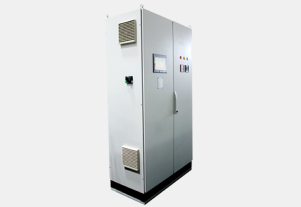

Control Panel
The advanced electronic control system manages all functions efficiently. Generates detailed production, alerts, and machine status reports.

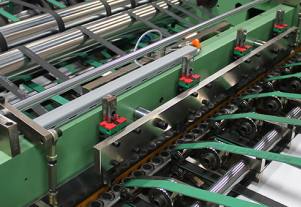

Square Back Pressing Unit
3 strokes with uniform pressure by the cam follower bearing on the spine for perfect edge squaring.

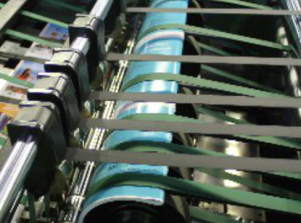

Folding Unit
Central folding knife with knurled rolls ensures precise folds. Supports folding of thick covers up to 600 GSM.

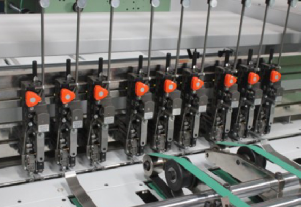

Wire Stitching Unit
Heavy-duty stitching unit delivers consistent pinning quality. Features include wire spool mounting, mechanical pulling, and precise spacing.
No Paper Bunch, No Title Cover
No manual intervention required for cover feeding or for taking additional covers.
Advantages
Affordable price
Consistent performance
Excellent quality output
Longer life
Addons
Stand-Alone Shrink Wrapping Machine
Strokes – 50 / 80 cycles/min
End products
Staple Pin Exercise Notebooks
